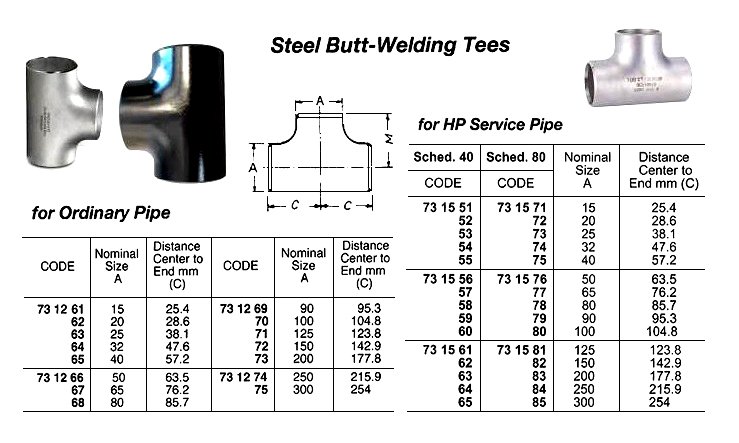

731271 TEE STEEL BUTT-WELDING SGP, 125A

731271 TEE STEEL BUTT-WELDING SGP, 125A
规格参数 参数值
IMPA编码 731271
产品单位 PCE
产品规格 Butt-Welding Pipe Fittings used for the fabrication of ordinary carbon steel pipe (SGP) of comparatively low pressure steam, water, oil, gas and air. Ends are machine faced and bevelled. Available in galvanized or black (ungalvanized) but usually black ones are supplied unless otherwise specified. Their maximum working pressure is 2.5 MPa (25 kgf/cm2).
中文汉化 731271 钢制焊接接头SGP，125A 对于制作普通碳钢管（SGP）如低压蒸汽、水、油、气和空气，使用焊接管件。端面为机加工并倒角。有镀锌或非镀锌（热浸锌）可供选择，但通常提供非镀锌的，除非另有说明。它们的最大工作压力为2.5兆帕（25公斤/平方厘米）。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
