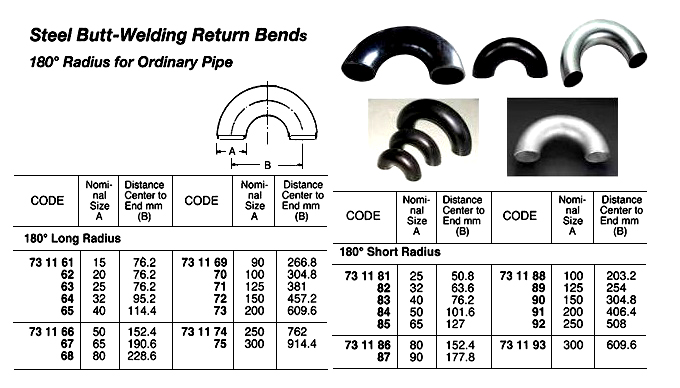

731162 RETURN BEND STEEL BUTT-WELDING, SGP 180DEG LONG RADIUS 20A

731162 RETURN BEND STEEL BUTT-WELDING, SGP 180DEG LONG RADIUS 20A
规格参数 参数值
IMPA编码 731162
产品单位 PCE
产品规格 Butt-Welding Pipe Fittings used for the fabrication of ordinary carbon steel pipe (SGP) of comparatively low pressure steam, water, oil, gas and air. Ends are machine faced and bevelled. Available in galvanized or black (ungalvanized) but usually black ones are supplied unless otherwise specified. Their maximum working pressure is 2.5 MPa (25 kgf/cm2).
中文汉化 731162 回弯型高强度钢对焊件,SGP 180°长半径20A 对焊管件,用于制造压力较低的蒸汽、水、油、气和空气的普通碳素钢管（SGP）。两端经过车削和坡口处理。有镀锌和非镀锌（热浸锌）两种可供选择，但通常提供非镀锌的，除非特别说明。它们的最大工作压力为2.5兆帕（25公斤/平方厘米）。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
