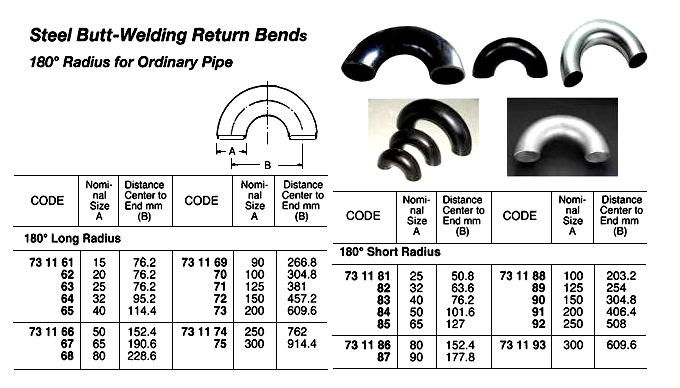

731169 RETURN BEND STEEL BUTT-WELDING, SGP 180DEG LONG RADIUS 90A

731169 RETURN BEND STEEL BUTT-WELDING, SGP 180DEG LONG RADIUS 90A
规格参数 参数值
IMPA编码 731169
产品单位 PCE
产品规格 Butt-Welding Pipe Fittings used for the fabrication of ordinary carbon steel pipe (SGP) of comparatively low pressure steam, water, oil, gas and air. Ends are machine faced and bevelled. Available in galvanized or black (ungalvanized) but usually black ones are supplied unless otherwise specified. Their maximum working pressure is 2.5 MPa (25 kgf/cm2).
中文汉化 731169 回弯型无缝焊接件, 180°长半径, 90A 类型：用于制造普通碳钢管（SGP）的低压蒸汽、水、油、气和空气管道连接。两端为机加工平面并倒角。提供镀锌或黑（非镀锌）表面，但通常供应的是黑色的，除非另有说明。其最大工作压力为2.5兆帕（25公斤/平方厘米）。
