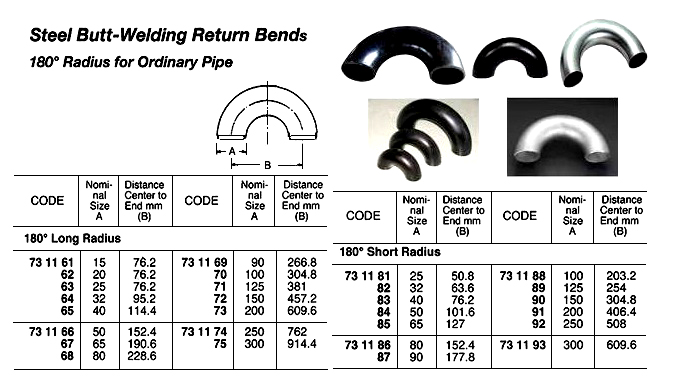

731172 RETURN BEND STEEL BUTT-WELDING, SGP 180DEG LONG RADIUS 150A

731172 RETURN BEND STEEL BUTT-WELDING, SGP 180DEG LONG RADIUS 150A
规格参数 参数值
IMPA编码 731172
产品单位 PCE
产品规格 Butt-Welding Pipe Fittings used for the fabrication of ordinary carbon steel pipe (SGP) of comparatively low pressure steam, water, oil, gas and air. Ends are machine faced and bevelled. Available in galvanized or black (ungalvanized) but usually black ones are supplied unless otherwise specified. Their maximum working pressure is 2.5 MPa (25 kgf/cm2).
中文汉化 731172 回弯型无缝焊接接头，SGP 180°长半径，150A 型号的管件用于制造普通碳钢管道（SGP），适用于较低压力的蒸汽、水、油、气和空气。端部经过车床加工和平头。可提供镀锌或非镀锌（热浸锌）选项，但通常供应的是非镀锌的，除非另有说明。其最大工作压力为2.5兆帕（25公斤/平方厘米）。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
