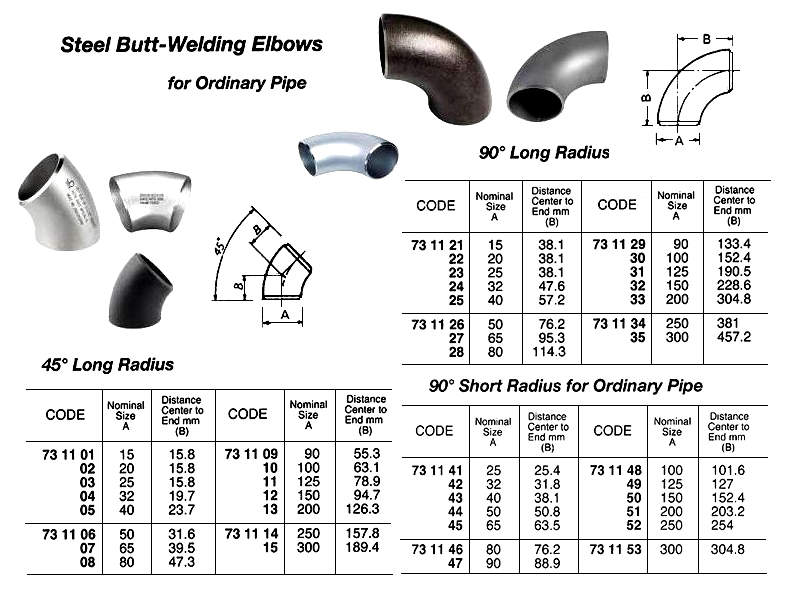

731143 ELBOW STEEL BUTT-WELDING SGP, 90DEG SHORT RADIUS 40A

731143 ELBOW STEEL BUTT-WELDING SGP, 90DEG SHORT RADIUS 40A
规格参数 参数值
IMPA编码 731143
产品单位 PCE
产品规格 Butt-Welding Pipe Fittings used for the fabrication of ordinary carbon steel pipe (SGP) of comparatively low pressure steam, water, oil, gas and air. Ends are machine faced and bevelled. Available in galvanized or black (ungalvanized) but usually black ones are supplied unless otherwise specified. Their maximum working pressure is 2.5 MPa (25 kgf/cm2).
中文汉化 731143 钢制短半径90度焊接肘，40A 类别：用于制造普通碳钢管（SGP）的焊接接头，适用于低压蒸汽、水、油、气和空气管道。端面经过机加工并倒角。提供镀锌或非镀锌（热浸锌）选项，但通常供应的是非镀锌的，除非特别指定。其最大工作压力为2.5兆帕（25公斤/平方厘米）。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
