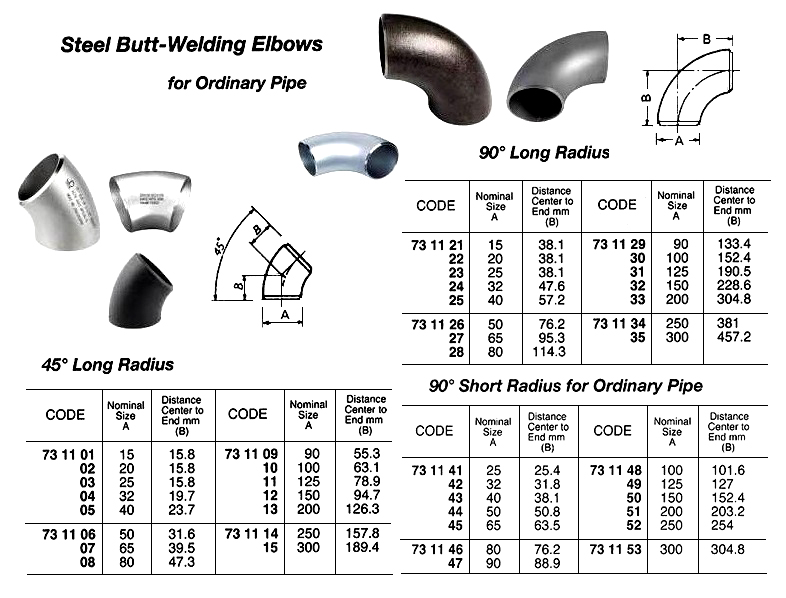

731103 ELBOW STEEL BUTT-WELDING SGP, 45DEG LONG RADIUS 25A

731103 ELBOW STEEL BUTT-WELDING SGP, 45DEG LONG RADIUS 25A
规格参数 参数值
IMPA编码 731103
产品单位 PCE
产品规格 Butt-Welding Pipe Fittings used for the fabrication of ordinary carbon steel pipe (SGP) of comparatively low pressure steam, water, oil, gas and air. Ends are machine faced and bevelled. Available in galvanized or black (ungalvanized) but usually black ones are supplied unless otherwise specified. Their maximum working pressure is 2.5 MPa (25 kgf/cm2).
中文汉化 731103 钢质焊接肘部，45°长半径，25A型：这是一种用于制造普通碳钢管（SGP）的焊接接头，适用于低压力蒸汽、水、油、气和空气管道。端面经过机器加工并斜切。提供镀锌或非镀锌（热镀锌）选项，但通常供应的是非镀锌的，除非另有说明。其最大工作压力为2.5兆帕（25公斤/平方厘米）。
