735141 JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND25 L:130MM

735141 JOINT EXPANSION RUBBER BELLOW, DIN MODEL 5570 ND25 L:130MM
规格参数 参数值
IMPA编码 735141
产品单位 PCE

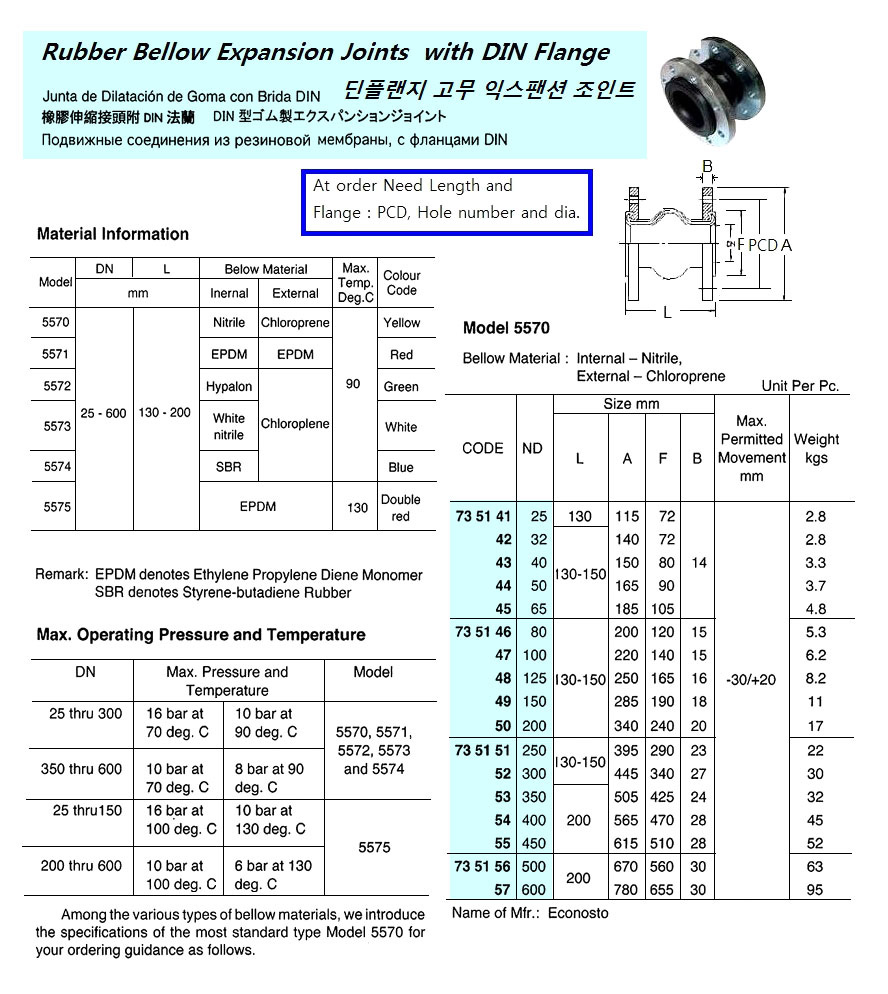

产品规格 Flexible expansion joints for absorbing thermal expansion, the reduction of vibrations and preventing stress in pipe systems. The expansion joints have a type approval from Det Norske Veritas, Germanischer Lloyds and ABS. Bellows are optional from the following materials listed in the material information table. Among the various types of bellow materials, we introduce the specifications of the most standard type Model 5570 for your ordering guidance as follows. Model 5570, Bellow Material: Internal – Nitrile, External – Chloroprene
中文汉化 735141 联接膨胀橡胶波纹管，DIN型号5570 ND25 L:130MM 这是一种用于吸收热膨胀、减少振动以及防止管道系统应力的柔性膨胀接头。这些接头获得了Det Norske Veritas、德国劳氏和ABS的认可。 波纹管的材料可根据材料信息表中的选项定制。在众多波纹管材质中，我们为您推荐最标准型号5570的规格，以供您参考订购。 型号5570，波纹管材质： 内层 - 硅胶（Nitrile） 外层 - 氯丁橡胶（Chloroprene）
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
