710443 PIPE CARBONSTEEL HIGH-PRESSURE, STS SCH-80 12"(300A)X5.5MTR

710443 PIPE CARBONSTEEL HIGH-PRESSURE, STS SCH-80 12
规格参数 参数值
IMPA编码 710443
产品单位 LN

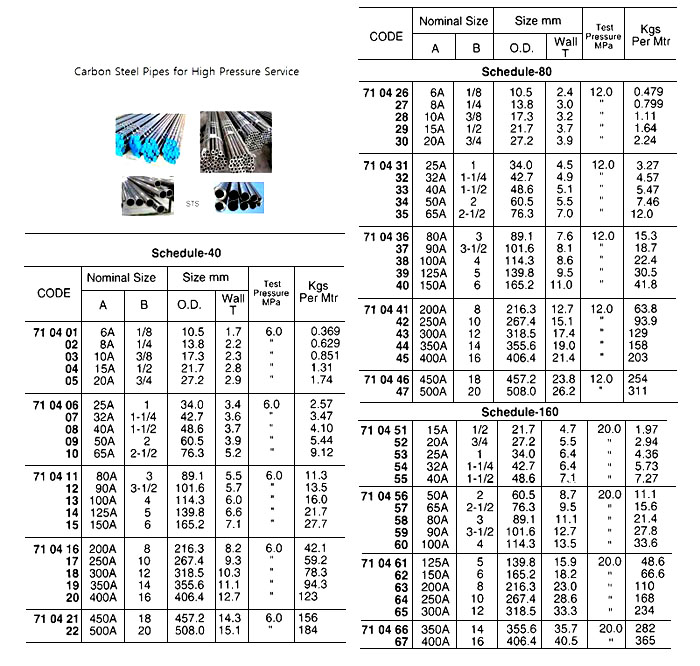

产品规格 Standard length: 5.5 mtrs. Ref. JIS-G-3455 (STS-370) quality. STS denotes Steel Tube Special. Equal quality to BS778, DIN1630, ISO2604. Plain both ends. Available in black only. Most common schedule (Wall Thickness) number 40, 80 and 160 are listed below. They are used for temperatures less than 350oC.
中文汉化 710443 碳钢高压管，STS-SCH 80，12英寸(300A)X5.5米标准长度：5.5米。参考JIS-G-3455（STS-370）级别质量。STS表示特殊钢管。其质量与BS778、DIN1630、ISO2604标准相当。两端平齐。仅提供黑色。最常见的壁厚等级为40、80和160，如下所示。它们适用于温度低于350°C的场合。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
