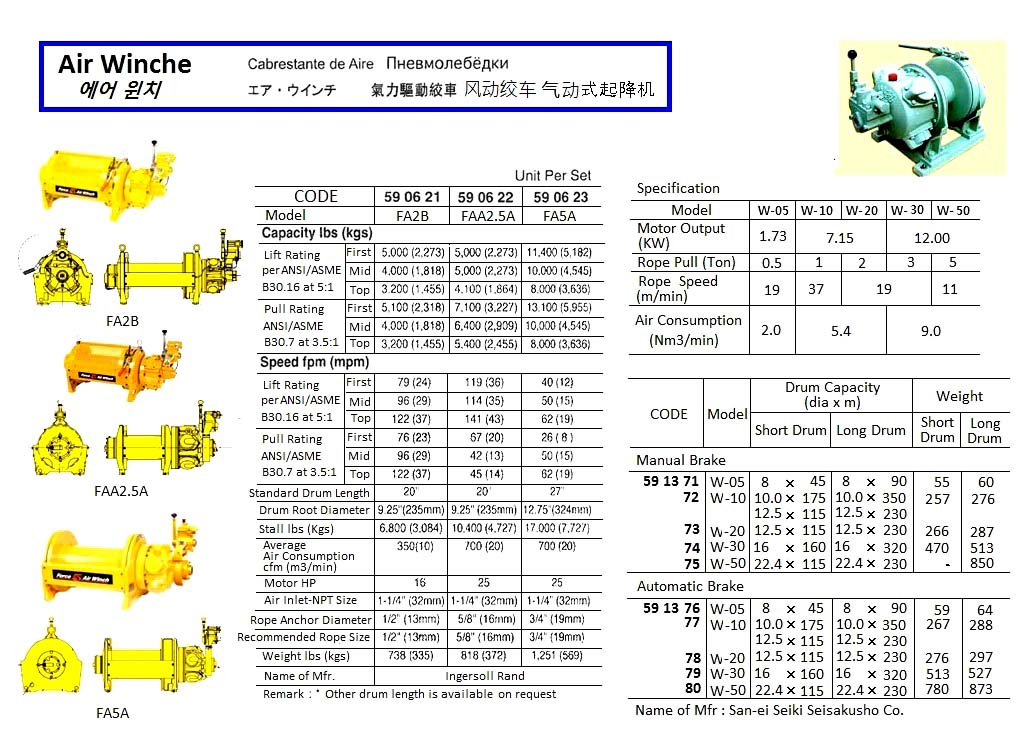

591371 WINCH AIR MANUAL BRAKE 1.73KW, ROPE PULL 0.5TON MODEL:W-05

591371 WINCH AIR MANUAL BRAKE 1.73KW, ROPE PULL 0.5TON MODEL:W-05
规格参数 参数值
IMPA编码 591371
产品单位 SET
产品规格 This is the multi-purpose air winch and it is attached standard radial piston type air motor, and control valve. The handling of this winch can be easily and safety. * Easy operation [control Lever only] and safe mechanism [Brake] are designed. *Compact light weight can be moved quickly from one location to another. *Dusty environment is acceptable for use. *No sparks are generated. *No damage with overheat occurs even for overload. *Continuous operation at full capacity is available. *Drum diameter is large enough to prolong life of rope. Guidance to choose the correct utility winch for your applications; 1. How much is to be lifted, pulled, or tensioned? 2. How fast is the load to be moved (if at all)? 3. How much wire rope is needed?
中文汉化 591371 手动绞盘1.73千瓦，绳索拉力0.5吨型号：W-05这是一个多用途的空气绞盘，标准配备径向活塞型空气马达和控制阀。*操作简便（仅需控制手柄）和安全机制（刹车）设计。*紧凑轻便，便于迅速从一个位置移动到另一个位置。*适合在尘土环境中使用。*无火花产生。*即使负载过载，也不会因过热而损坏。*可以全负荷连续运行。*鼓直径足够大，可延长绳索寿命。选择适合您应用的实用绞盘指南：1. 需要提升、拉动还是张紧多少？2. 负载需要多快移动（如果有）？3. 需要多长的钢丝绳？
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
