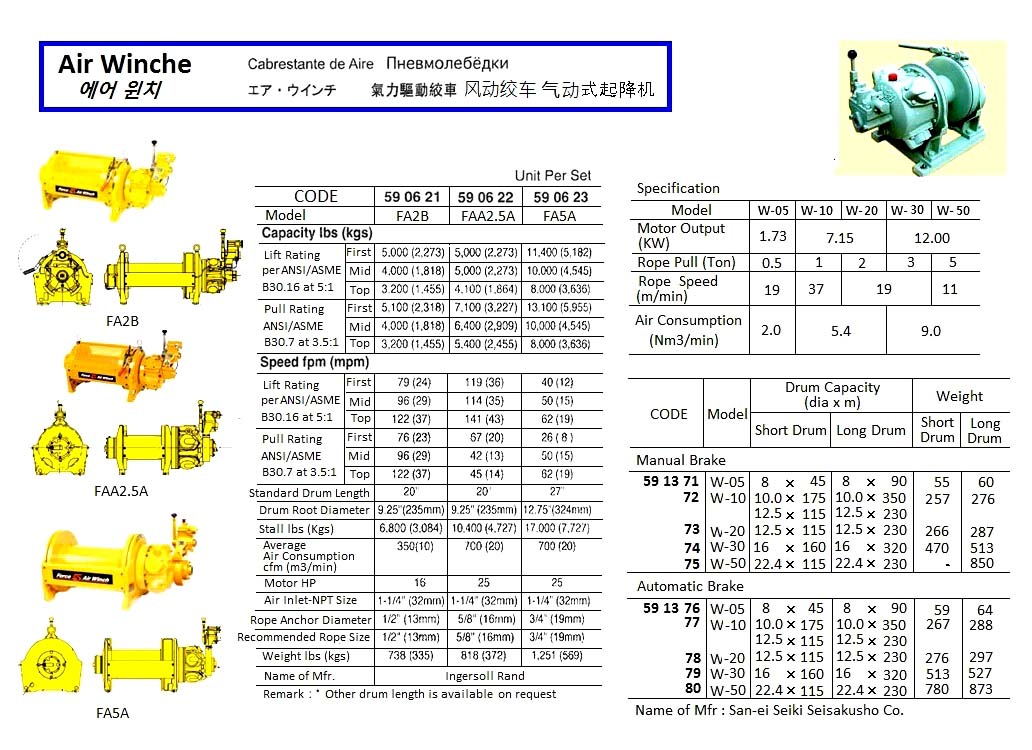

591376 WINCH AIR AUTO BRAKE 1.73KW, ROPE PULL 0.5TON MODEL:W-05

591376 WINCH AIR AUTO BRAKE 1.73KW, ROPE PULL 0.5TON MODEL:W-05
规格参数 参数值
IMPA编码 591376
产品单位 SET
产品规格 This is the multi-purpose air winch and it is attached standard radial piston type air motor, and control valve. The handling of this winch can be easily and safety. * Easy operation [control Lever only] and safe mechanism [Brake] are designed. *Compact light weight can be moved quickly from one location to another. *Dusty environment is acceptable for use. *No sparks are generated. *No damage with overheat occurs even for overload. *Continuous operation at full capacity is available. *Drum diameter is large enough to prolong life of rope. Guidance to choose the correct utility winch for your applications; 1. How much is to be lifted, pulled, or tensioned? 2. How fast is the load to be moved (if at all)? 3. How much wire rope is needed?
中文汉化 591376 型号：W-05 这是一款多功能气动绞盘，标准配备径向活塞型空气马达和控制阀。 该绞盘操作简便且安全：仅需操作杆即可操作，并配备了刹车机制。 它体积紧凑、重量轻，便于快速在不同位置移动。适用于灰尘环境，无火花产生，即使负载过载也不会过热。可以持续全负荷运行。大直径的滚筒可延长绳索使用寿命。 选择适合您应用的实用绞盘指南： 1. 需要提升、拉动或张紧的重量是多少？ 2. 负载的移动速度（如果有）是多少？ 3. 需要多长的钢丝绳？
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
