370513 SEARCHLIGHT SUEZ CANAL 220V, 2000W HALOGEN LAMP

370513 SEARCHLIGHT SUEZ CANAL 220V, 2000W HALOGEN LAMP
规格参数 参数值
IMPA编码 370513
产品单位 PCE

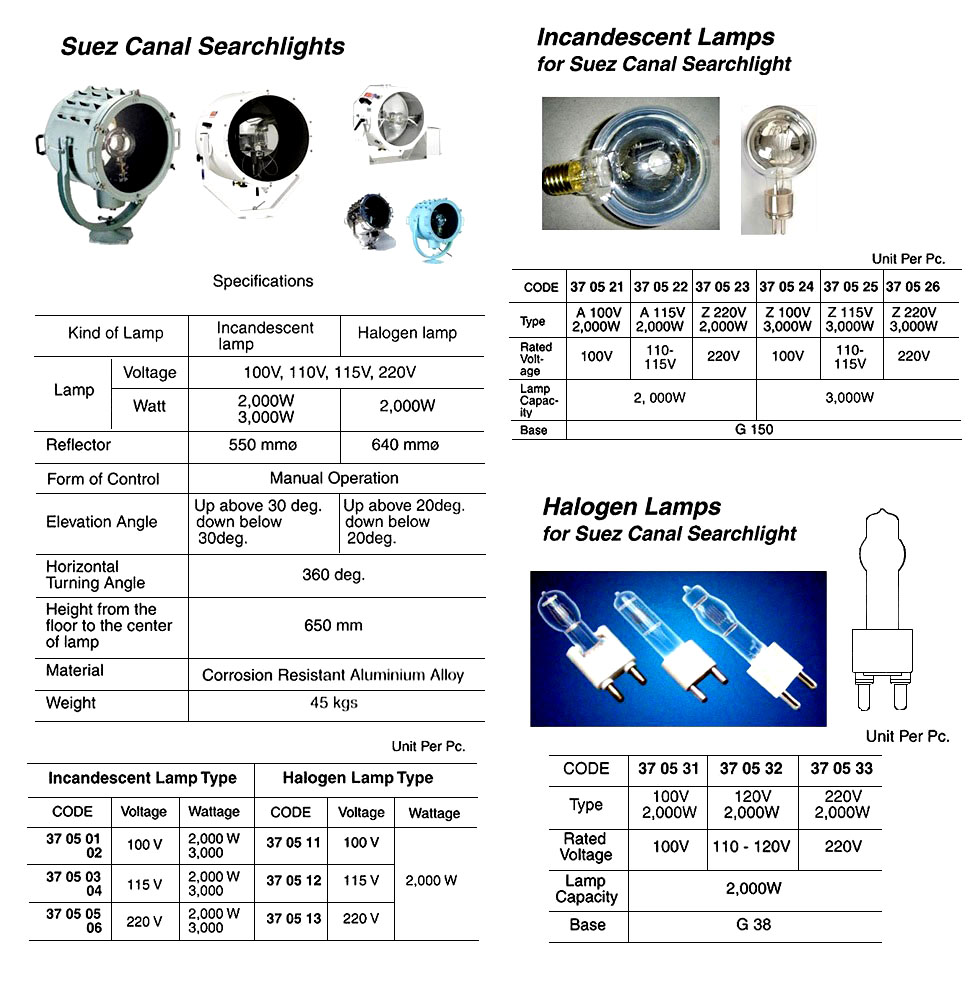

产品规格 Complying with the “Rules of Navigation” established by The Suez Canal Authority, which states that ships which go through the canal during the night must be equipped with The Suez Canal Searchlight. The lamp must have a luminous intensity of a single light beam not less than 3 x 106 (3 million) candela, which is equivalent to a high efficiency lamp of 2,000 watts for vessels up to 30,000 S.C. tons gross and 3,000 watts for vessels over 30,000 S.C. tons gross. The searchlights must have a certificate issued by one of the Classification Societies such as N.K., Lloyd, etc. and must be equipped with a 2 lamp carrier that can be turned into position to let the lamp focus directly on the reflector. Available in a floor mounting type or ceiling mounting type. The most popular model is the floor mounting, manual operated type as listed below. This type is also available for use with incandescent lamps or halogen lamps.
中文汉化 370513 塞尔苏斯运河220伏,2000瓦卤素聚光灯 符合苏伊士运河管理局制定的“航行规则”，规定夜间通过运河的船舶必须配备塞苏斯运河探照灯。 灯具单光束发光强度不得低于3x106坎德拉（300万），这相当于对于总吨位不超过30,000标准排水量(S.D.W.)的船只使用功率为2,000瓦的高效灯具，而对于总吨位超过30,000标准排水量(S.D.W.)的船只则使用3,000瓦。 探照灯需由船级社（如N.K.劳氏等）颁发证书，并配备一个双灯座，可调整位置使灯泡直接聚焦于反射镜上。 可以是地板安装型或天花板安装型。 最常见的型号是手动操作的地板安装型，具体如下所示。 这种类型也可用于白炽灯或卤素灯。
