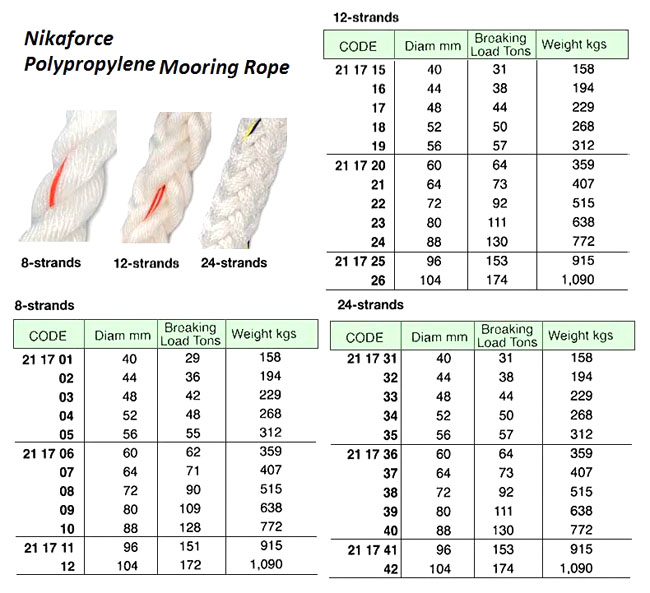

211738 MOORING ROPE PP NIKAFORCE, 24-STRAND 72MM DIA X 220MTR

211738 MOORING ROPE PP NIKAFORCE, 24-STRAND 72MM DIA X 220MTR
规格参数 参数值
IMPA编码 211738
产品单位 CL
产品规格 Exceptional strength to weight ratio , High breaking load exceeding Cordage Institute specification CI 1901 and EN ISO 10572*1 specs., High abrasion resistance , U.V. stabilization to 160 KLY (Suitable for Florida, U.S.A. & Dubai, UAE sunshine), High shock & dynamic load absorption, with filaments of equal thickness and tensile strength, Electronically controlled even load distribution, Ease of handling. *1 EN ISO 10572 has replaced EN 14687 standard Only virgin bright white European raw materials used. Filament tensile strength exceeds EN and ISO specifications. Recommended working load limit: 20% of the minimum breaking load. Approved by ABS, B.V., L.R.S., G.L. Ropes are also according to the latest regulations and recommendations of OCIMF for the safe mooring of tankers. Ordering can be made by indicating clearly the following items; Preferable number of strands (8-strands, 12 strands or 24 strands), Size (Diameter), Length (Standard length 220 mtr – the length of rope will be specified by customer) and size of eye-splice (Whether eyes should be spliced on one or both ends of the rope). Applications: Mooring, Anchoring, Towing, Tails, Melting Point: 165oC, Elongation at Breaking: 15%, Specific Gravity: 0.92 (Floating) 8-strands (4×2)
中文汉化 211738号泊船绳PP NIKAFORCE，24股，直径72毫米，长度220米。它具有极高的强度重量比，断裂负荷超过绳索协会(Cordage Institute)规格CI 1901和EN ISO 10572（取代EN 14687标准）的要求。它有很高的耐磨性，紫外线稳定性能达到160千光年（适用于美国佛罗里达州和阿拉伯联合酋长国迪拜的阳光环境），能有效吸收冲击和动态负载，所有纤维的厚度和拉力均匀，电子控制均匀负载分布，易于操作。 *1 EN ISO 10572已取代EN 14687标准 仅使用纯白欧洲优质原料，纤维的拉伸强度超过EN和ISO标准。推荐工作载荷限制为断裂负荷的20%。该产品已获得ABS、B.V.、L.R.S.、G.L.等机构的认可，符合油轮安全系泊的最新规定和建议。订购时请明确以下信息：首选股数（8股、12股或24股）、绳径、标准长度220米（绳长由客户指定），以及眼环位置（绳头是否在一端或两端打眼）。 应用领域：泊船、锚定、拖曳、尾缆。熔点：165℃，断裂伸长率：15%，密度：0.92（浮水）。8股（4×2）规格。
