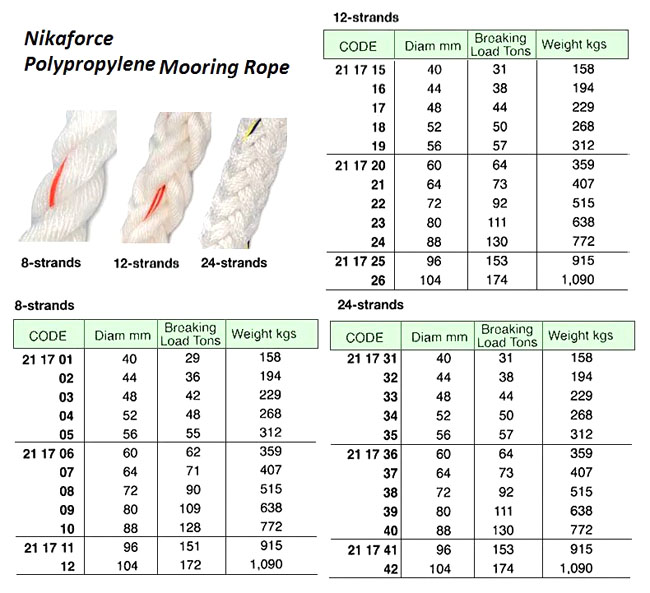

211739 MOORING ROPE PP NIKAFORCE, 24-STRAND 80MM DIA X 220MTR

211739 MOORING ROPE PP NIKAFORCE, 24-STRAND 80MM DIA X 220MTR
规格参数 参数值
IMPA编码 211739
产品单位 CL
产品规格 Exceptional strength to weight ratio , High breaking load exceeding Cordage Institute specification CI 1901 and EN ISO 10572*1 specs., High abrasion resistance , U.V. stabilization to 160 KLY (Suitable for Florida, U.S.A. & Dubai, UAE sunshine), High shock & dynamic load absorption, with filaments of equal thickness and tensile strength, Electronically controlled even load distribution, Ease of handling. *1 EN ISO 10572 has replaced EN 14687 standard Only virgin bright white European raw materials used. Filament tensile strength exceeds EN and ISO specifications. Recommended working load limit: 20% of the minimum breaking load. Approved by ABS, B.V., L.R.S., G.L. Ropes are also according to the latest regulations and recommendations of OCIMF for the safe mooring of tankers. Ordering can be made by indicating clearly the following items; Preferable number of strands (8-strands, 12 strands or 24 strands), Size (Diameter), Length (Standard length 220 mtr – the length of rope will be specified by customer) and size of eye-splice (Whether eyes should be spliced on one or both ends of the rope). Applications: Mooring, Anchoring, Towing, Tails, Melting Point: 165oC, Elongation at Breaking: 15%, Specific Gravity: 0.92 (Floating) 8-strands (4×2)
中文汉化 211739 摩押绳PP Nikaforce，24股，直径80毫米x 220米。它具有极高的强度重量比，断裂负荷超过绳索协会规格CI 1901和EN ISO 10572（取代EN 14687标准）的要求，具有出色的耐磨性和紫外线稳定性能，适用于美国佛罗里达州和阿拉伯联合酋长国迪拜的阳光环境，能有效吸收冲击和动态载荷，其纤维厚度和拉力均匀，电子控制负载分布，易于操作。 *1 EN ISO 10572已取代EN 14687标准 仅使用欧洲优质白色纯原料，纤维的拉伸强度超越EN和ISO标准。推荐工作载荷限制为断裂负荷的20%。该产品已获得ABS、B.V.、L.R.S.和G.L.的认可，符合油轮安全系泊的最新法规和OCIMF的建议。 订购时，请明确以下信息：首选股数（8股、12股或24股），直径大小，长度（标准长度为220米，客户需指定绳索长度），以及眼环位置（是否在一端或两端接头）。 应用领域：系泊、锚定、拖曳、尾缆。熔点：165℃，断裂延伸率：15%，比重：0.92（浮水性）；8股（4×2）配置。
物料版本

以上内容为自动翻译的内容，仅供参考

This content is automatically translated and is for reference only.
