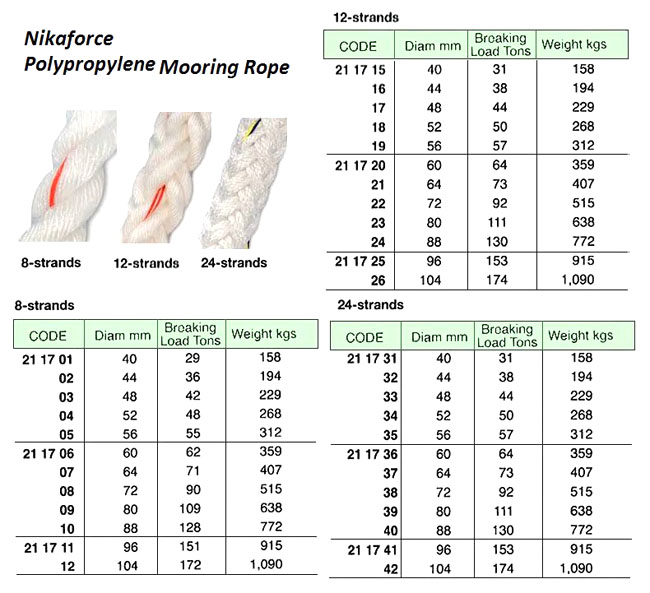

211740 MOORING ROPE PP NIKAFORCE, 24-STRAND 88MM DIA X 220MTR

211740 MOORING ROPE PP NIKAFORCE, 24-STRAND 88MM DIA X 220MTR
规格参数 参数值
IMPA编码 211740
产品单位 CL
产品规格 Exceptional strength to weight ratio , High breaking load exceeding Cordage Institute specification CI 1901 and EN ISO 10572*1 specs., High abrasion resistance , U.V. stabilization to 160 KLY (Suitable for Florida, U.S.A. & Dubai, UAE sunshine), High shock & dynamic load absorption, with filaments of equal thickness and tensile strength, Electronically controlled even load distribution, Ease of handling. *1 EN ISO 10572 has replaced EN 14687 standard Only virgin bright white European raw materials used. Filament tensile strength exceeds EN and ISO specifications. Recommended working load limit: 20% of the minimum breaking load. Approved by ABS, B.V., L.R.S., G.L. Ropes are also according to the latest regulations and recommendations of OCIMF for the safe mooring of tankers. Ordering can be made by indicating clearly the following items; Preferable number of strands (8-strands, 12 strands or 24 strands), Size (Diameter), Length (Standard length 220 mtr – the length of rope will be specified by customer) and size of eye-splice (Whether eyes should be spliced on one or both ends of the rope). Applications: Mooring, Anchoring, Towing, Tails, Melting Point: 165oC, Elongation at Breaking: 15%, Specific Gravity: 0.92 (Floating) 8-strands (4×2)
中文汉化 211740 莫尔斯绳索，PP Nikaforce，24股，直径88毫米，长度220米。它具有极高的强度重量比，其断裂负荷超过缆绳协会(Cordage Institute)规格CI 1901和EN ISO 10572（取代EN 14687标准）的要求。该绳索具有高耐磨性，紫外线稳定性能达到160千光年（适用于美国佛罗里达州和阿拉伯联合酋长国迪拜的阳光环境），能有效吸收冲击和动态载荷，其每根纤维厚度和拉力均匀。采用电子控制均匀负载分布，易于操作。 *1 EN ISO 10572已取代EN 14687标准 仅使用欧洲优质的纯白色原料制造，纤维的拉伸强度超过EN和ISO标准。推荐工作载荷限制：最大断裂负荷的20%。 该产品已获得ABS、B.V.、L.R.S.、G.L.的认可，符合最新的OCIMF（国际油船供应者协会）关于油轮安全系泊的规定。订购时，请明确以下信息：首选股数（8股、12股或24股）、直径、标准长度（220米，客户将指定绳索长度）以及眼环位置（绳索一端或两端是否接眼环）。 用途：系泊、锚定、拖曳、尾缆。熔点：165°C，断裂时延伸率：15%，比重：0.92（浮水）。8股（4×2）规格。
