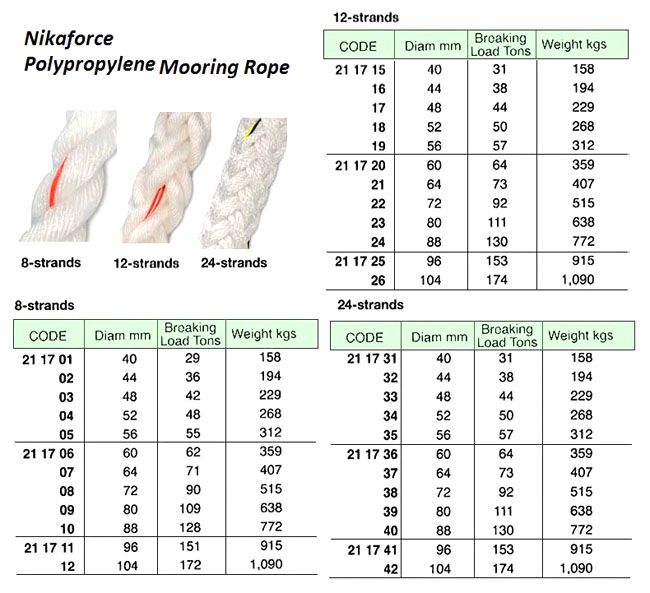

211741 MOORING ROPE PP NIKAFORCE, 24-STRAND 96MM DIA X 220MTR

211741 MOORING ROPE PP NIKAFORCE, 24-STRAND 96MM DIA X 220MTR
规格参数 参数值
IMPA编码 211741
产品单位 CL
产品规格 Exceptional strength to weight ratio , High breaking load exceeding Cordage Institute specification CI 1901 and EN ISO 10572*1 specs., High abrasion resistance , U.V. stabilization to 160 KLY (Suitable for Florida, U.S.A. & Dubai, UAE sunshine), High shock & dynamic load absorption, with filaments of equal thickness and tensile strength, Electronically controlled even load distribution, Ease of handling. *1 EN ISO 10572 has replaced EN 14687 standard Only virgin bright white European raw materials used. Filament tensile strength exceeds EN and ISO specifications. Recommended working load limit: 20% of the minimum breaking load. Approved by ABS, B.V., L.R.S., G.L. Ropes are also according to the latest regulations and recommendations of OCIMF for the safe mooring of tankers. Ordering can be made by indicating clearly the following items; Preferable number of strands (8-strands, 12 strands or 24 strands), Size (Diameter), Length (Standard length 220 mtr – the length of rope will be specified by customer) and size of eye-splice (Whether eyes should be spliced on one or both ends of the rope). Applications: Mooring, Anchoring, Towing, Tails, Melting Point: 165oC, Elongation at Breaking: 15%, Specific Gravity: 0.92 (Floating) 8-strands (4×2)
中文汉化 211741 莫尔斯绳索，PP Nikaforce，24股，直径96mm x 220米。重量与强度的出色比值，抗断裂载荷超过缆绳协会规格CI 1901和EN ISO 10572（取代EN 14687标准）的要求，具有高耐磨性，紫外线稳定至160 KLY（适用于美国佛罗里达州和阿拉伯联合酋长国迪拜的阳光环境），能有效吸收冲击和动态负载，每根纤维厚度和拉力均匀，电子控制均匀负载分布，易于操作。 *1 EN ISO 10572已取代EN 14687标准 仅使用欧洲优质纯白色原料，纤维拉伸强度超越EN和ISO标准要求。建议工作负荷限制为断裂负荷的20%。已获得ABS、B.V.、L.R.S.、G.L.的认可，绳索符合OCIMF关于油轮安全系泊的最新规定和建议。 订购时，请明确以下信息：首选股数（8股、12股或24股），直径，长度（标准长度为220米，客户需指定绳索长度），以及眼环位置（是否在一端或两端接头）。 应用领域：系泊、锚定、拖曳、尾缆。熔点：165°C，断裂时延伸率：15%，比重：0.92（浮水）。8股（4×2）规格。
